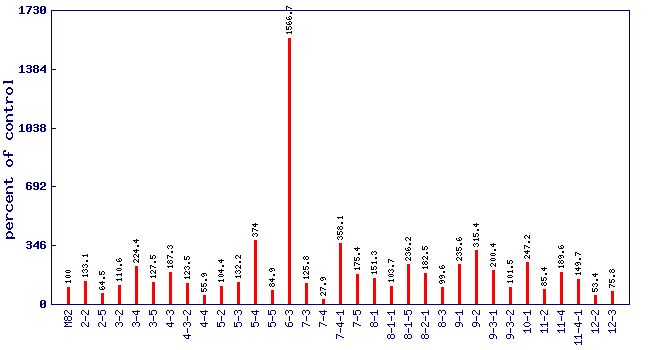

Relative benzaldehyde level (percent of control)*
Experiment: flavor related metabolite profiling in S. pennellii IL lines (FL, Fall 2003, Field)




linerelative level (percent of control)
M82100
2-2133.1
2-564.5
3-2110.6
3-4224.4
3-5127.5
4-3187.3
4-3-2123.5
4-455.9
5-2104.4
5-3132.2
5-4374
5-584.9
6-31566.7
7-3125.8
7-427.9
7-4-1358.1
7-5175.4
8-1151.3
8-1-1103.7
8-1-5236.2
8-2-1182.5
8-399.6
9-1235.6
9-2315.4
9-3-1200.4
9-3-2101.5
10-1247.2
11-285.4
11-4189.6
11-4-1149.7
12-253.4
12-375.8

* Note
  • A value of zero means the benzaldehyde concentration wasbelow the level of dection
  • No measure of benzaldehyde was performed on lines notshown in the figure and table
